RB-D62Q1367TB32
Reference Board Kit, ML62Q1367, 16Bit, nX-U16/100, General Purpose Microcontroller
2 有存貨
需要更多？
2 件可于 3-4 個工作日後配送(英國 件庫存)
| 數量 | 價格 |
|---|---|
| 1+ | NT$1,478.590 |
價格Each
最少: 1
多項: 1
NT$1,478.59
品項附註
僅針對此訂單新增至訂單確認、發票和出貨備註。
產品訊息
製造商ROHM
製造商產品編號RB-D62Q1367TB32
訂購代碼4566835
技術資料表
Silicon ManufacturerRohm Semiconductor
Silicon Core NumberML62Q1367
Kit Application TypeMicrocontroller
Application Sub TypeGeneral Purpose Microcontroller
Core ArchitecturenX-U16/100
Core Sub-Architecture-
Silicon Family NameML62Q1000
Kit ContentsReference Board ML62Q1367, User Manual
Product Range-
SVHCNo SVHC (25-Jun-2025)
產品總覽

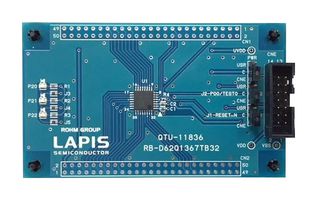

RB-D62Q1367TB32 is a ML62Q1367 reference board. It can be used for learning ‘how to use’ the ML62Q1367, on which the user needs to provide additional external components if necessary. By using the ML62Q1367 reference board together with the LAPIS Semiconductor’s on-chip emulator EASE1000 and the provided software development environment, the user can develop software, debug and program the Flash.
- Board is populated with ML62Q1367 32pin TQFP package
- Mounted with the linked connector to EASE1000
- Through-holes for connecting the pins of LSI to external peripheral boards
- Power supply is selectable; supplied from the on-chip emulator EASE1000 or CN1-3pin /CN2-2pin
- Mounted with LED (P20,P21,P22)
- Operating voltage ranges from +1.6 to +5.5V (supply VDD with up to 1.8V or higher during power up)
- Board size is 55.88mm x 93.98mm
技術規格
Silicon Manufacturer
Rohm Semiconductor
Kit Application Type
Microcontroller
Core Architecture
nX-U16/100
Silicon Family Name
ML62Q1000
Product Range
-
Silicon Core Number
ML62Q1367
Application Sub Type
General Purpose Microcontroller
Core Sub-Architecture
-
Kit Contents
Reference Board ML62Q1367, User Manual
SVHC
No SVHC (25-Jun-2025)
技術文件 (1)
法規與環境保護
原產地：
承擔產品生產最後程序之國家原產地：Japan
承擔產品生產最後程序之國家
承擔產品生產最後程序之國家原產地：Japan
承擔產品生產最後程序之國家
關稅編號：84733020
US ECCN:EAR99
EU ECCN:NLR
符合 RoHS 規定：是
RoHS
符合 RoHS 鄰苯二甲酸酯類規定:是
RoHS
SVHC:No SVHC (25-Jun-2025)
下載產品合規憑證
產品合規憑證
重量 (公斤)：.022
