FN9260-4-06

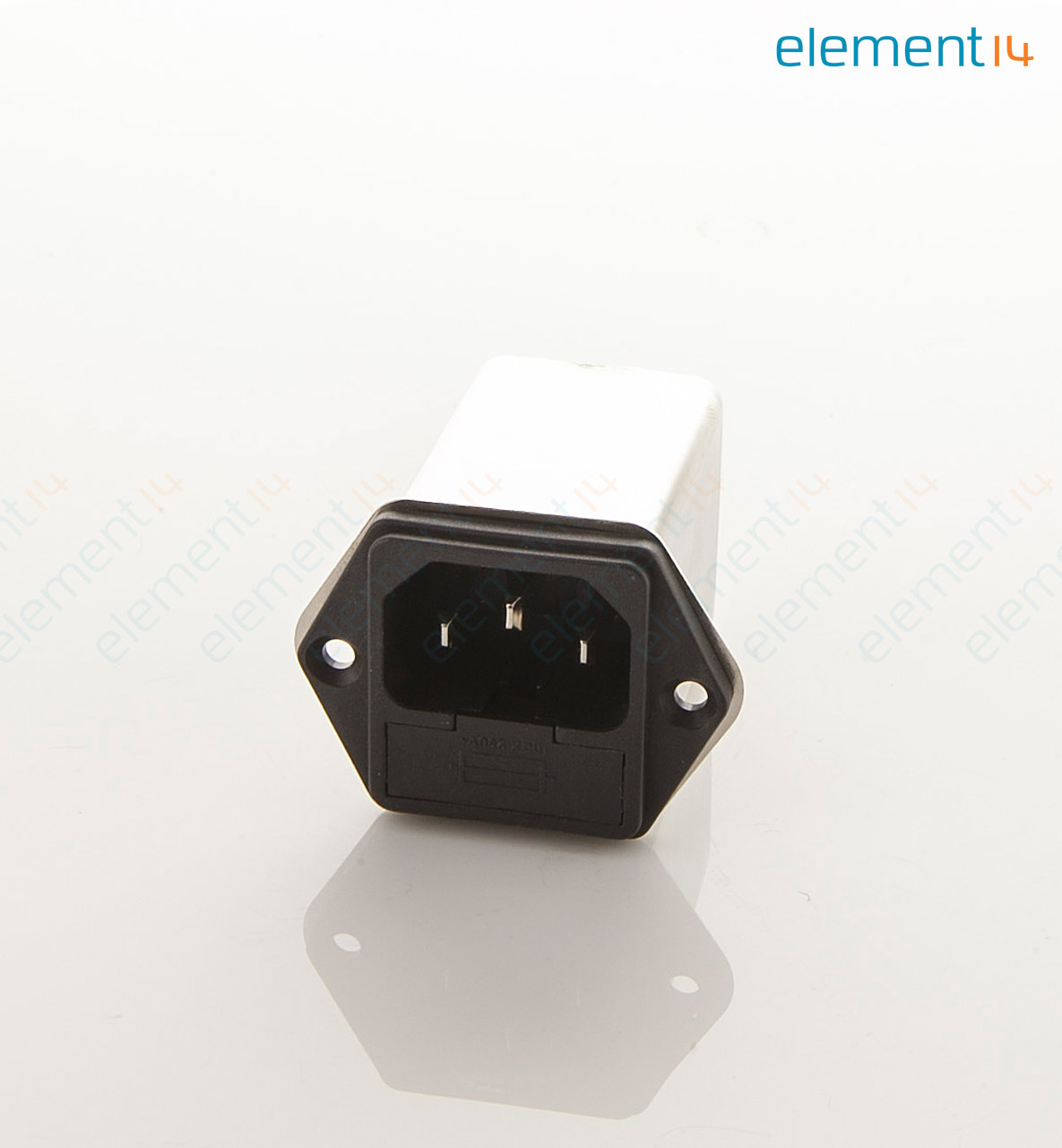

Filtered IEC Power Entry Module, IEC C14, General Purpose, 4 A, 250 VAC, 2-Pole Fuse Holder
472 有存貨
需要更多？
472 件可于 3-4 個工作日後配送(英國 件庫存)
| 數量 | 價格 |
|---|---|
| 1+ | NT$554.750 |
| 10+ | NT$471.440 |
| 25+ | NT$441.910 |
| 100+ | NT$415.430 |
| 250+ | NT$395.610 |
| 500+ | NT$379.370 |
價格Each
最少: 1
多項: 1
NT$554.75
品項附註
僅針對此訂單新增至訂單確認、發票和出貨備註。
產品訊息
製造商產品編號FN9260-4-06
訂購代碼1104563
Product RangeFN 9260
其他名稱800498-SF
技術資料表
Connector TypeIEC C14
Power Entry Module ApplicationsGeneral Purpose
Current Rating4A
Voltage Rating250VAC
Switch Type-
Fuse Holder2-Pole Fuse Holder
Fuse Size Held5mm x 20mm
Connector TerminalsQuick Connect
Connector MountingFlange Mount
IP RatingIP40
Product RangeFN 9260
產品總覽
The FN9260-4-06 is a 4A General Purpose Power Module with 6 output connections and 2 fuses. This power entry module combines an IEC inlet, mains filter with excellent filter attenuation and fuses in a small form factor. This product brings you rapid availability of a standard filter associated with the necessary safety acceptances. Standard IEC connector filters are a practical solution helping you to pass EMI system approval in a short time.
- Exceptional conducted attenuation performance
- UL94V-2 Flammability rating
- IP40 Protection rating
- -25 to 85°C Operating temperature range
應用
Power Management, Test & Measurement
技術規格
Connector Type
IEC C14
Current Rating
4A
Switch Type
-
Fuse Size Held
5mm x 20mm
Connector Mounting
Flange Mount
Product Range
FN 9260
Power Entry Module Applications
General Purpose
Voltage Rating
250VAC
Fuse Holder
2-Pole Fuse Holder
Connector Terminals
Quick Connect
IP Rating
IP40
技術文件 (1)
相關產品
找到 1 個產品
法規與環境保護
原產地：
承擔產品生產最後程序之國家原產地：Thailand
承擔產品生產最後程序之國家
承擔產品生產最後程序之國家原產地：Thailand
承擔產品生產最後程序之國家
關稅編號：85363010
US ECCN:EAR99
EU ECCN:NLR
符合 RoHS 規定：是
RoHS
符合 RoHS 鄰苯二甲酸酯類規定:是
RoHS
下載產品合規憑證
產品合規憑證
重量 (公斤)：.052
