1M1-M000127DVA

1M1-M000127DVA is a TUL PYNQ™-Z2 Advance kit. This TUL PYNQ™-Z2 board is based on Xilinx Zynq SoC designed for the Xilinx University Program to support the PYNQ (Python Productivity for Zynq) framework and embedded systems development.

• 650MHz dual-core Cortex-A9 processor, Arduino header, Raspberry Pi, Pmods x2 interfaces GPIO
• High-bandwidth peripheral controllers: 1G Ethernet, USB 2.0, SDIO
• Low-bandwidth peripheral controller: SPI/UART/CAN/I2C, programmable from JTAG/Quad-SPI flash/microSD
• Programmable logic equivalent to Artix-7 FPGA, on-chip analogue-to-digital converter (XADC)
• 13,300 logic slices, each with four 6-input LUTs and 8 flip-flops, 630KB of fast block RAM
• 4 clock management tiles, each with a phase locked loop and mixed-mode clock manager, 220 DSP slices
• Dual-core ARM Cortex-A9 processor, 1.3M reconfigurable gates FPGA
• 512MB DDR3 / 128Mbit FLASH memory, Micro SD card slot storage
• 10/100/1000 Ethernet network, HP+Mic, Line in, ADAU1761 AUDIO codec audio
• Dimension is 86.86mm x 139.97mm

內容

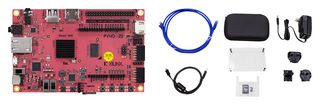

Board, Micro SD card 8G (image preload), AC/DC adapter, USB type-A to micro USB cable, Ethernet cable, Protection acrylic case, Protection zipper case.
