PTF651M0000BZEK

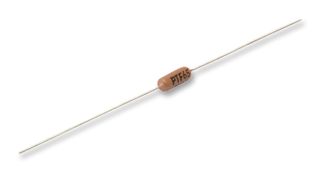

Through Hole Resistor, 1 Mohm, PTF Series, 250 mW, ± 0.1%, Axial Leaded, 500 V
圖片僅供舉例說明。 請參閱產品描述。
374 有存貨
2,100 即日起您可預購補貨
374 件可于 3-4 個工作日後配送(英國 件庫存)
| 數量 | 價格 |
|---|---|
| 1+ | NT$495.640 |
| 5+ | NT$415.970 |
| 10+ | NT$336.290 |
| 20+ | NT$305.250 |
| 40+ | NT$281.680 |
| 100+ | NT$258.110 |
價格Each
最少: 1
多項: 1
NT$495.64
品項附註
僅針對此訂單新增至訂單確認、發票和出貨備註。
產品訊息
製造商VISHAY
製造商產品編號PTF651M0000BZEK复制
製造商標準前置時間30 週
訂購代碼1703752
Product RangePTF Series
技術資料表
Resistance1Mohm
Product RangePTF Series
Power Rating250mW
Resistance Tolerance± 0.1%
Resistor Case / PackageAxial Leaded
Voltage Rating500V
Resistor TechnologyMetal Film
Temperature Coefficient± 5ppm/°C
Resistor TypeHigh Precision, High Stability
Product Diameter3.68mm
Product Length12.07mm
Product Width-
Operating Temperature Min-55°C
Operating Temperature Max150°C
Qualification-
SVHCNo SVHC (16-Jul-2019)
產品總覽
The PTF651M0000BZEK is a 1MΩ 250mW through-hole mounting Metal Film Resistor with solder-coated copper termination. The high precision resistor features proprietary epoxy coating provides superior moisture protection, very good high frequency characteristics and it can replace wirewound bobbins.
- Extremely low temperature coefficient of resistance
- Very low noise and voltage coefficient
- Very good high frequency characteristics
技術規格
Resistance
1Mohm
Power Rating
250mW
Resistor Case / Package
Axial Leaded
Resistor Technology
Metal Film
Resistor Type
High Precision, High Stability
Product Length
12.07mm
Operating Temperature Min
-55°C
Qualification
-
Product Range
PTF Series
Resistance Tolerance
± 0.1%
Voltage Rating
500V
Temperature Coefficient
± 5ppm/°C
Product Diameter
3.68mm
Product Width
-
Operating Temperature Max
150°C
SVHC
No SVHC (16-Jul-2019)
技術文件 (1)
法規與環境保護
原產地：
承擔產品生產最後程序之國家原產地：United States
承擔產品生產最後程序之國家
承擔產品生產最後程序之國家原產地：United States
承擔產品生產最後程序之國家
關稅編號：85332100
US ECCN:EAR99
EU ECCN:NLR
符合 RoHS 規定：是
RoHS
符合 RoHS 鄰苯二甲酸酯類規定:是
RoHS
SVHC:No SVHC (16-Jul-2019)
下載產品合規憑證
產品合規憑證
重量 (公斤)：.000545
