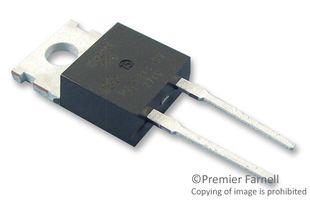

BYW29E-200
Fast / Ultrafast Diode, 200 V, 8 A, Single, 1.3 V, 25 ns, 80 A
圖片僅供舉例說明。 請參閱產品描述。
不再生產
產品訊息
製造商產品編號BYW29E-200复制
訂購代碼1081360
Product RangeBYW29
技術資料表
Repetitive Peak Reverse Voltage200V
Average Forward Current8A
Diode ConfigurationSingle
Forward Voltage Max1.3V
Reverse Recovery Time25ns
Forward Surge Current80A
Operating Temperature Max150°C
Diode Case StyleTO-220AC
No. of Pins2 Pin
Product RangeBYW29
SVHCTo Be Advised
產品總覽
The BYW29E-200 is an Ultrafast Power Diode features fast switching, high thermal cycling performance and soft recovery minimizes power-consuming oscillations. The ultrafast rectifier is designed to have a very low forward voltage intended for use as output rectifiers in high frequency switched mode power supplies. The ultrafast rectifiers have a very soft recovery which helps to minimize the Electromagnetic Interference (EMI).
- Low on-state loss
- Low thermal resistance
- Reverse voltage surge capability
- Bring high power efficiency
- Ultrafast switching frequency
- 8kV Electrostatic discharge voltage
應用
Power Management, Imaging, Video & Vision
技術規格
Repetitive Peak Reverse Voltage
200V
Diode Configuration
Single
Reverse Recovery Time
25ns
Operating Temperature Max
150°C
No. of Pins
2 Pin
SVHC
To Be Advised
Average Forward Current
8A
Forward Voltage Max
1.3V
Forward Surge Current
80A
Diode Case Style
TO-220AC
Product Range
BYW29
技術文件 (1)
相關產品
找到 5 個產品
法規與環境保護
原產地：
承擔產品生產最後程序之國家原產地：Philippines
承擔產品生產最後程序之國家
承擔產品生產最後程序之國家原產地：Philippines
承擔產品生產最後程序之國家
關稅編號：85411000
US ECCN:EAR99
EU ECCN:NLR
符合 RoHS 規定：是
RoHS
符合 RoHS 鄰苯二甲酸酯類規定:待通知
SVHC:To Be Advised
下載產品合規憑證
產品合規憑證
重量 (公斤)：.002041
